SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]

  • SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]
Menşe yeri Şangay
Marka adı KSTONE
Sertifika ISO9000
Model numarası LF-301
Min sipariş miktarı 1
Fiyat $25000-$26000
Ambalaj bilgileri Karton / ahşap kutu
Teslim süresi 30 iş günü
Ödeme koşulları T/T
Yetenek temini Yılda 1000

Contact me for free samples and coupons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Ürün ayrıntıları
Ölçüm aralığı 0.01ppm - 10000ppm Kesinlik 0.01ppm
dak. Çözünürlük 0.01ppm Dedektörün gaz ve elektrik entegre hortumu Standart uzunluk 3 metredir (gerektiği gibi özelleştirilebilir, 10 metreye kadar)
Güç giriş kablosu 2 metre Giriş Gücü 220V ± 22V 50Hz ± 2Hz ​​(harici lityum pil invertör güç kaynağı mevcuttur)
Vurgulamak

0.01ppm SF6 Leakage Detector

,

0.5s SF6 Leakage Detector
Mesaj bırakın
Ürün Açıklaması

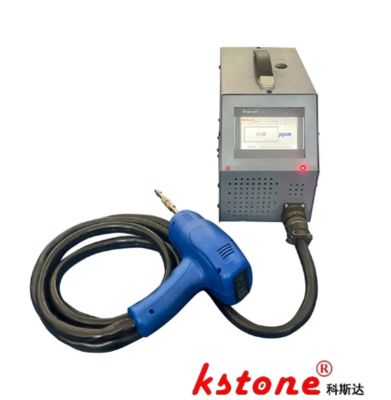

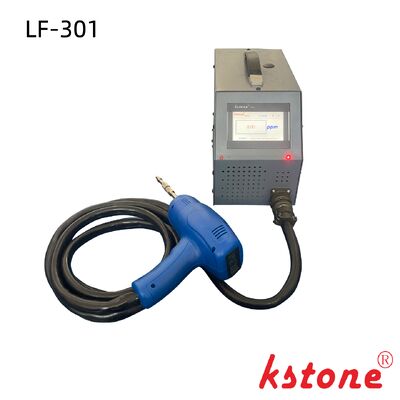

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]


Overview

It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.

Accurately quantify 0.01ppm.



Technical Parameters:

Measurement Range

0.01ppm - 10000ppm(v)

Measurement Accuracy

0.01ppm(v)

Minimum Resolution

0.01ppm(v)

Recovery Time from "Poisoning"

≤10 seconds in an environment of 99.99% SF6
1 second in an environment of 10% SF6

Response Time

≤0.5 seconds for 10ppm
≤1 second for 1ppm

Indication Method

Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm
LCD digital display of the detector: The higher the leakage concentration, the greater the digital change;
Buzzer prompt: The higher the leakage concentration, the greater the sound frequency change of the buzzer

Gas and Electric Integrated Hose of the Detector

Standard length is 3 meters (Can be customized as required, up to 10 meters)

Power Input Cable

2 meters

Input Power

220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available)

Ambient Temperature

5℃ - 45℃

Ambient Humidity

≤85%

Power

≤100W

Net Weight of the Whole Machine

Detector: 1.2Kg
Main unit: 7Kg

External Dimensions of the Main Unit

310×168×200mm

Outer Packaging

Aluminum alloy anti-collision box

Gross Weight

12Kg

External Dimensions of the Aluminum Alloy Box

370*320*270mm
